Kudosworld Coupling

Coupling

KudosWorld เป็นผู้ผลิตอุปกรณ์เครื่องถ่ายกำลังทางกล หรือไฟฟ้า (Mechanical or Electrical Power transmission) หรือที่เรียกว่าคอพปลิ้ง (Coupling) ระหว่างเครื่องขับ (Drive) เช่นมอเตอร์ กับตัวถูกขับ (Driven) Kudos เป็นผลิตภัณฑ์ของประเทศเยอรมนี ที่มีโรงงานผลิตในประเทศจีน Coupling (คอพปลิ้ง) ที่บริษ้ทผลิตและจัดจำหน่าย เช่น

  • Composite shaft coupling Cooling tower coupling
  • Grid coupling
  • Disc coupling
  • Gear coupling
  • Elastomers coupling
  • Flexible pin type coupling
  • Jaw coupling
  • Flex coupling
  • Tire coupling
  • Torque limiter
  • Wind turbine coupling
  • Chain coupling
  • Drum coupling
  • Universal joint
  • Hydrodynamic coupling
  • Permanent magnet coupling
  • Variable frequency drive
  • High voltage motor

Hydrodynamic Coupling

Power is transmitted through oil or water flow in between the coupling propeller and turbine. Certain amount of liquid is filled in working circuit to ensure stable speed output.

hydrodynamic coupling

  • Range: Maximum power up to 1750KW.
  • Size & Type: Outer diameter ranges from 328mm. to 1295mm.
  • HR-/HR-C/HR-CC/HR-D/HR-B/ HR-CB/HR-CCB/HR-DB/HR-S/HRCS/HR-CCS/HR-DS/HR-P/HR-CP/HR- CCP/MRR/MB/MBW
  • Application: Conveyors, induced-draft fans, ball mills, crushers, slurry pumps, mixers cranes, etc.
  • Industries: thermal power plants, steel & iron work, cement, mining, chemistry, petroleum, part & whart, docks, sugar, etc.

Variable Speed Coupling

Oil flow in the working circuit changes during working, thus controls the output of speed and clutching.

variable speed coupling

  • Range: Maximum power up to 1600KW
  • Size & Type: From 320 to 850
  • Model: MCB/LMC/LMC/LCMK/LMC-SC/LMC-TC
  • Application: elevators, crushers, conveyor belts, bucket wheel machines, making machines, mixers, etc.
  • Industrial: thermal power plants, steel & iron works, cement, mining chemistry, petroleum, sugar, etc.

Permanent Magnetic Coupling

Magnetic field generated by relative motion between the conductor and permanent magnetic part enables the torque transmission from motor to loaded equipment without mechanical connection.

permanent magnetic coupling

  • Range: Maximum power up to 1600KW
  • Size & Type: From 320 to 850
  • Model: MCB/LMC/LMCP/LMCK/LMC-SC/LMC-TC
  • Application: elevators, crushers, conveyor belts, bucket wheel machines, leather
    making machines, mixers, etc.
  • Industrial: thermal power plants, steel & iron works, cement, mining, chemistry,
    petroleum, sugar, etc.

Grid Coupling

When in motion, grids are inserted in the teeth groves of two hubs, which enables the connection between the input shaft and output shaft, hence the transmission of torque

grid coupling

  • Range: Maximum power up to 580000Nm
  • Size & Type: From 20s to 240s
  • Model: SH/SV/SAS/SFS/SBW
  • Application: Medium or big transmission systems of severe shock load, such
    as stone crushers, conveyor belts, reductors, ball mills of power
    plants, mining winches, automobiles, gas pumps and other
    heavy-lifting machineries with crank reciprocating mechanism.
  • Industrial: Thermal power plant, steel & iron works, metallurgy, mining,
    port & wharf, coal mining.

Gear Coupling

Gear coupling is composed of inner toothed sleeve and outer toothed hubs which have the same quantity of teeth, and other components. When in motion, relative displacement occurs between two shafts, and the faces of inner & outer teeth move relatively in axial direction

gear coupling

  • Range : Maximum torque up to 6.26x106 Nm
  • Size & Type: From 112 to 1600
  • Model: SSM/GD/CCM/GDL/SEM/GS/CEM/GSL
  • Application: Conveyor systems, paper-making machinery, fans, slurry pumps,
    cement mills, mixers, crushers, rolling transmission and auxiliary
    motion transmission.
  • Industries: Steel & Iron works, heavy-lifting machines, mining, construction, automobile, petroleum, boats & ships, paper-making machinery
    and other heavy machinery.

Disc Coupling

Relative displacement of two connected shafts is compensated by the elastic warping of discs, disc coupling is a kind of high-performance metallic flexible coupling.

disc coupling

  • Range :Maximum torque up to 17800 Nm
  • Size & Type :From 00 to 65
  • Model :A3/Ax,A4/A5/A7/E4/G4/J-AB/J-AZ
  • Application :Suitable for axial transmission in high temperature, high speed,
    environmentally corrosive working conditions, widely adopted in axial
    transmission of various mechanical equipment, such as pumps
    (especially of big power, pump for chemistry industry), fans, crushers
    and high-speed power transmission systems, etc.
  • Industries :Steelworks, mining, construction, printing, automobiles, textiles,
    chemistry, petroleum, metallurgy, boats & ships, aviation, maritime
    vehicles, etc.

Flexible Pin Type Coupling

Pins are made of flexible materials and placed in the holes on the edges of two hubs, which are connected by pins, hence the realization of torque transmission.

flexible pin type coupling

  • Range : Maximum torque up to 2.0X106Nm
  • Size & Type : From 4 to 10000
  • Model : A/B/P/S1/S2/H
  • Application : Reducers, transmissions, pumps, dyeing machines,
    windlasses, cranes, crushers, conveyors, textile machines,
    ball mills, etc.
  • Industries : Steelworks, mining, construction, printing, docks, textiles,
    chemistry, petroleum, metallurgy, boats & ships, etc.

Jaw Coupling

The elastomer between two metal hubs is made of polyurethane, which effectively absorbs shock load and vibration, and transmits torque.

jaw coupling

  • Range : Maximum torque up to 7750Nm
  • Size & Type : From 050 to 90100
  • Model : Model: General
  • Application : Conveyors, cranes, pumps, fans, CNC lathes, processing
    centers, carving machines, CNC milling machines.
  • Industries : Metallurgy, mining, petroleum, chemistry, light industry, textiles,
    steelworks, power plants.

Torque Limiter

Motion happens through friction of rolling balls, cylinders or friction plates. When overloading happens, output shaft is to stop rotating, and input shaft rotates without load, hence the overload protection is realized.

torque limiter

  • Range : Maximum torque up to 8200Nm
  • Size & Type : From 0 to 7
  • Model : RB/RB-G/RD
  • Application : Auto screw tightening machines, capping machines, switching
    machines, ship loaders, scrapping machines, straightening
    machines, etc.
  • Industries : Steelworks, fans, coal machines, textile machines, packaging,
    etc.

Wind Turbine Coupling

Wind turbine coupling connects the high-speed shaft of gearbox and motor shaft, transmits torque, reduces system vibration and shock load, prevents overloading, compensates axial, radial and angular displacement, connects and separates shafts.

wind turbine coupling

  • Range : Maximum torque up to 57000Nm
  • Size & Type : From 0.75MW to 5.5MW
  • Model : KWP/KWPT
  • Application : Wind power generating apparatus
  • Industries : Wind power generating

Composite Coupling

The composite material adopted is only 20% the weight of steel material, so the length of the coupling shaft of composite material is 80% longer than that of steel, and no support bearings are required. This is a kind of coupling specially designed for cooling tower fans.

composite coupling

  • Range : Maximum torque up to 4090Nm
  • Size & Type : From CTKU-N to CTKU-N-229
  • Model : General
  • Application : Cooling towers.
  • Industries : Metal casting, electricity, plastics, rubber, textiles, steel & iron
    works, chemistry, petrochemistry, food, pharmaceuticals, etc.

Chain Coupling

Under two covers, the double-row roller chain engages two hubs with teeth, hence the torque is transmitted.

chain coupling

  • Range : Maximum torque up to 186000Nm
  • Size & Type : From CR 3810 to CR 24026
  • Model : General
  • Application : Conveyors, cranes, pumps, fans, CNC lathes, processing centers, carving machines, CNC milling machines
  • Industries : Metallurgy, mining, petroleum, chemistry, light industry, textiles,
    steelworks, power plants, etc.

Drum Coupling

Wire drum coupling is specially designed for cranes and conveyors, also suitable for austere and complicated working conditions in Steel & Iron Industry and port winches which are continuously heavily loaded.

drum coupling

  • Range : Maximum torque up to 685500Nm
  • Size & Type : From D0.25 to D62
  • Model : General
  • Application : Cranes and conveyors.
  • Industries : Ports, docks, steelworks, etc.

Universal Joint

A power transfer unit used when the driving axle is relatively far from the driven axle, when the two axles are not in a line or when the driven object is variable. Power can be transferred even if two axles are not in line or when the angle of the driven
object is changeable.

universal joint

  • Range : Maximum torque 0~1,170kNm
  • Size & Type : Flange diameter 58~550mm
  • Model : Cross bearing
  • Application : Ironmaking machines, Rolling mill plants, Calender drives,
    Paper machines, Special vehicles, Railway vehicles, Marine
    drives, Pump drives, General machinery construction plants
  • Industries : Steel & Iron works, electricity, petroleum, chemistry, coal mining,
    metallurgy, water purification, construction materials, etc.

Variable-Frequency Drive

Topologically structured with units connected to multiple electrical levels in series, modularized design, small size, compact structure, smooth and reliable
performance.

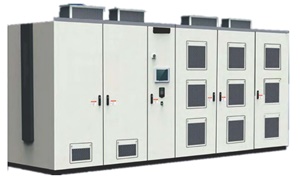

variable frenquency drive

  • Range : 160kW~20000kW(3~11kV),0.75kW~630kW(380~
    690V)
  • Size & Type : HVTDV-L series, HVTDV-F series, LVTDV
  • Model : Medium voltage, low voltage
  • Application : Fans, pumps, conveyor belts, mixers, elevators, etc.
  • Industries : Steel & Iron works, electricity, petroleum, chemistry, coal
    mining, metallurgy, water purification, construction materials,
    etc.
