Vane pumps - เวนปั๊ม หรือปั๊มไฮดรอลิกปั๊ม หรือแบบใบพัดปั๊ม
เวนปั๊มหรือปั๊มแบบใบพัด เป็นปั๊มที่มีคุณสมบัติพิเศษคือ มีความเร็วรอบที่สูง และเหมาะสำหรับใช้กับงานที่ต้องการอัตราการไหลสูงแต่แรงดันต่ำไปจนถึงขนาดปานกลาง และมีทั้งแบบที่ใบพัดคงที่กับแบบปรับค่าได้ด้วยการย้ายจุดศูนย์กลาง ของตัวหมุนที่ใบพัดเสียบอยู่
หลักการทำงานของเวนปั๊ม
น้ำมันไฮดรอลิกจะถูกส่งเข้ามาทางช่องเข้า แล้วเข้ามาเติมในส่วนช่องว่าง เมื่อปั๊มเริ่มหมุนตัว ใบพัดก็จะถูดสลัดออกมาสัมผัสกับตัวเรือน โดยแกนของใบพัดจะติดอยู่เยื้องกับจุดศูนย์กลางของตัวเรือน จากการที่แกนใบพัดติดอยู่เยื้องกับจุดศูนย์กลาง ทำให้ช่องว่างระหว่างใบพัดแต่ละช่วงไม่เท่ากัน โดยในช่วงจังหวะดูด ช่องว่างระหว่างใบพัดจะถูกขยายออกจนมีช่องว่างมากที่สุด หลังจากนั้น ช่องว่างจะเริ่มลดลงเป็นจังหวะการอัด การทำงานของตัวปั๊มจึงเงียบ ไม่มีเสียงดังรบกวน

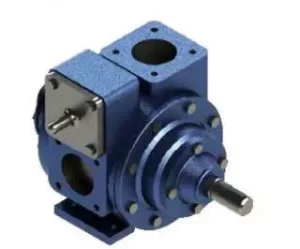

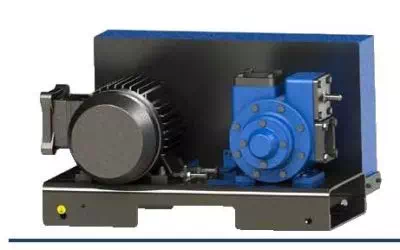

Type of vane pump
- Balanced vane pump
- Unbalanced vane pump
- Variable displacement vane pump
ขั้นตอนการทำงานของปั๊มแบบใบพัด
Advantages of vane pump
- Vane pumps are self-priming, strong, and provide continuous delivery at a fixed speed.
- They provide uniform discharge with negligible vibrations.
- Their vans are self-compensating for wear, and the vans can be easily replaced.
- These pumps do not require a check valve.
- They are light in weight and compact.
- They can handle liquids containing vapors & gases.
- Volumetric and overall efficiencies are high.
- Discharge is fewer sensitives to changes in viscosity & pressure variations.
- It can handle low viscosity liquids at high pressures.
- It can dry run for short periods.
- This pump develops a good vacuum.
- Balanced pump bearing eliminates side loads, and therefore higher operating pressures can be used.
Disadvantages of vane pump
- Relief valves are required to protect the pumps in the event of a sudden stop of delivery
- They are not suitable for abrasive liquids
- They require good sealing.
- They require good filtration systems, and foreign particles can severely damage the pump
- It has a complex design
- It is unsuitable for high viscosity liquids at high pressures
- They are fixed displacement pumps

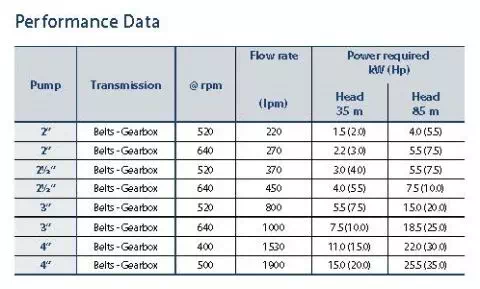

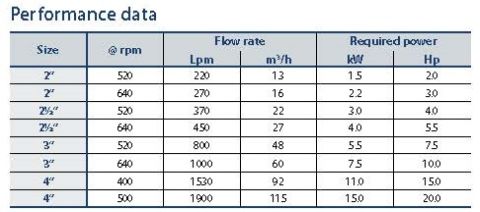

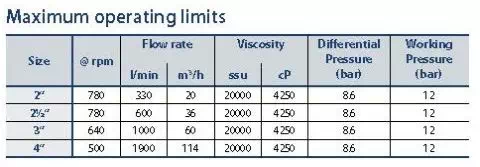

Materials Of Construction / Configuration Options
- Externals (head, casing) - Cast iron, ductile iron, steel, and stainless steel
- Vane, Pushrods - Carbon graphite, PEEK®
- End Plates - Carbon graphite
- Shaft Seal - Component mechanical seals, industry-standard cartridge mechanical seals, and magnetically-driven pumps
- Packing - Available from some vendors, but not usually recommended for thin liquid servic
Application of vane pump
This pump has various applications for the pumping of the following fluids
- Aerosol and Propellant
- Aviation Services – Fuel Transfer, Deicing
- Auto Industry – Fuel, Lube, Refrigeration Cooling
- Bulk transfer of LPG and NH3
- LPG cylinder filling
- Alcohol
- Refrigeration – Freons, Ammonia
